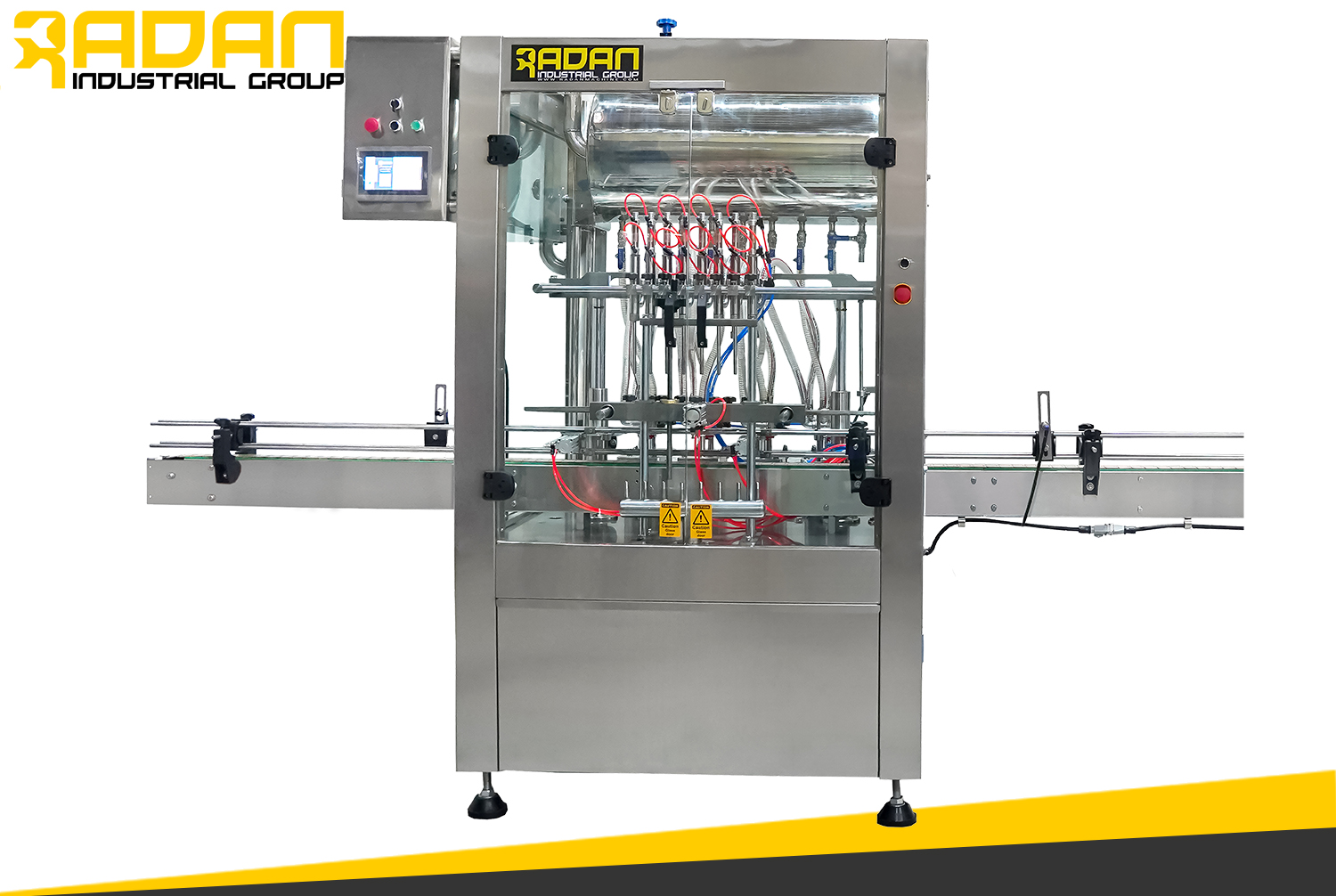

The automatic piston cylinder liquid filling machine with a servo motor mechanism is capable of filling different containers with 4 to 12 nozzles simultaneously. This machine is designed for filling liquids or pasty products up to a capacity of 1000 milliliters in glass, plastic, and metal containers. The process is fully automated and performed with high precision using servo motor technology and advanced controllers. Radan Machine liquid filling machines are designed and manufactured entirely in-house, bringing speed and efficiency to your production line.

Technical specifications of 1000 ml filler

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

Other specifications of the 1000 milliliter filler

• Suitable for filling various liquids from the bottom of the bottle
• Quick cleaning with the minimum amount of cleaning liquid
• Ability to save machine settings for different products
• Easy changeover between products with different volumes and viscosities
• Equipped with an HMI display and PLC controller
• Automatic cleaning system with adjustable settings via the display
• Suitable for filling corrosive, hot, foaming materials, and pulp-containing products (solid particles)
• Automatic level control system for tank filling
• Easy maintenance and servicing
• Equipped with bottle detection sensors at the inlet and outlet
• Traffic detection system
• GMP cabin made of 10 mm thick tempered glass
• Maximum product temperature up to 50°C (optional equipment to increase temperature tolerance up to 95°C)
• Pneumatic nozzles with no dripping

Options:

• Tank with heater and mixer
• Cylindrical tank according to GMP requirements.
• Closed-loop cleaning system with the ability to circulate disinfectants between the tank, cylinder, and nozzles
• Use of pharmaceutical-grade connections in accordance with GMP requirements.
• Ability to operate at a temperature of 90°C
