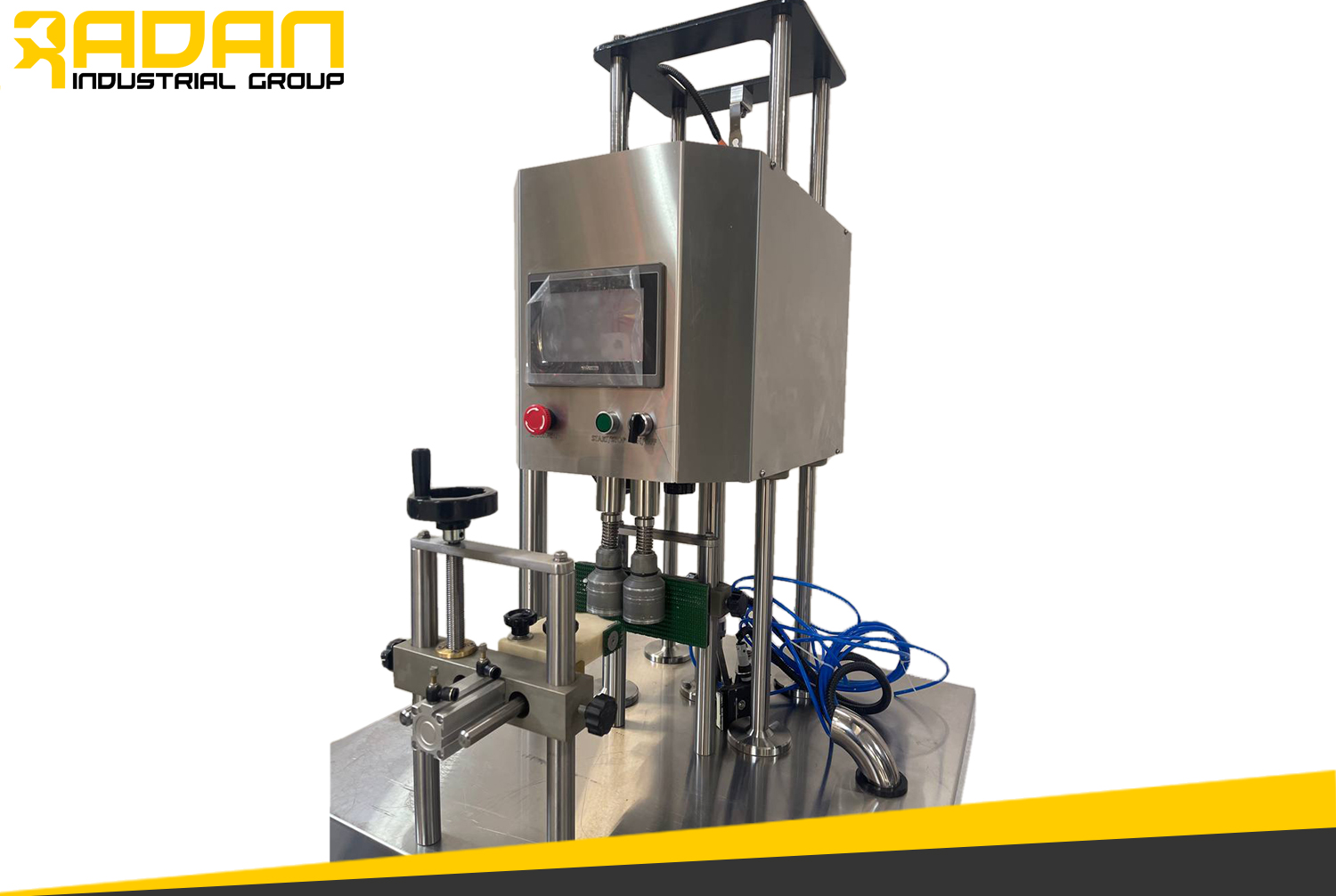

Double-Head capping Machine with Servo Motor Mechanism

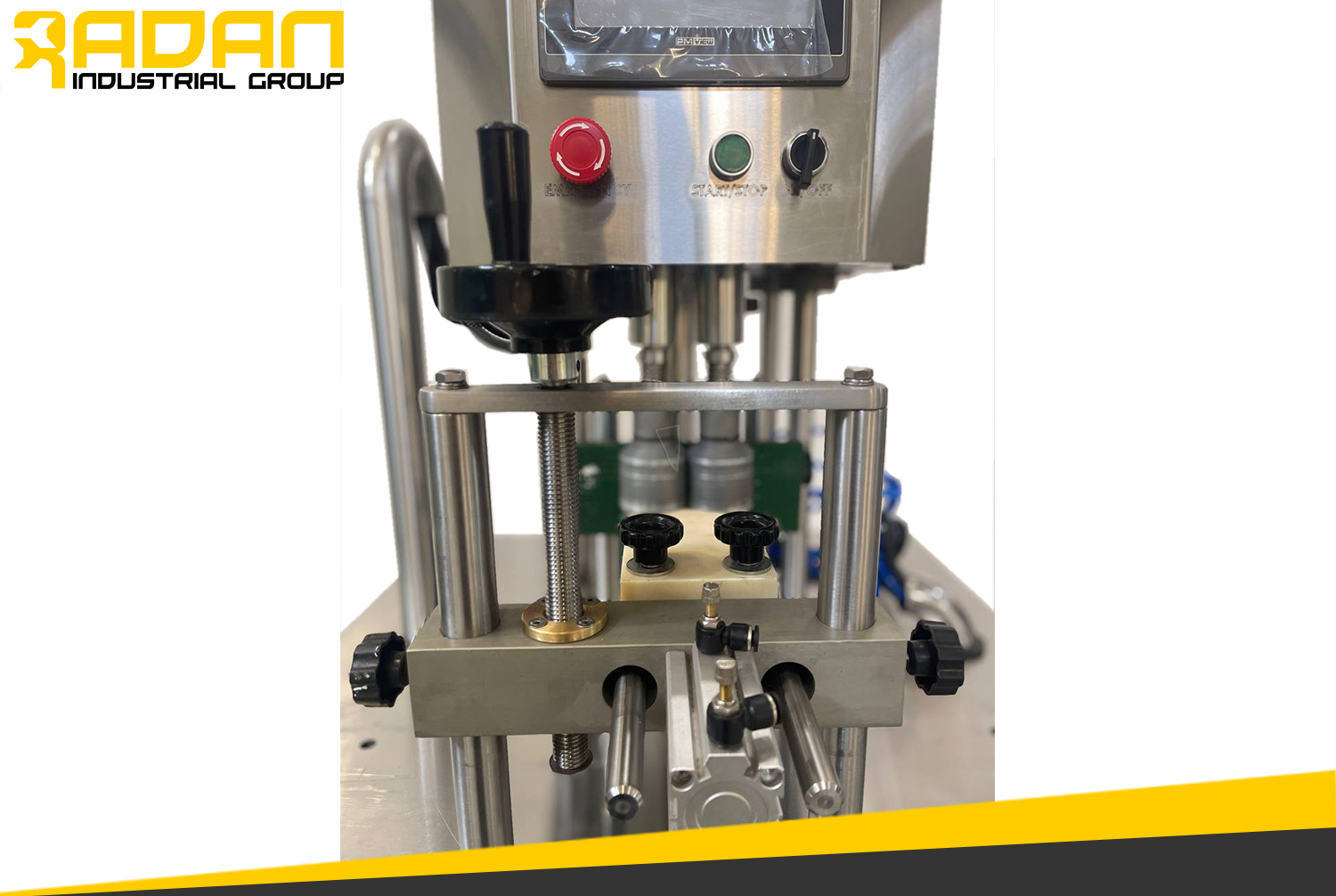

The double-head linear capping machine with a servo motor mechanism is designed to seal a variety of bottles, such as shampoo, dishwashing liquid, edible and industrial oils. The capping system of this machine is manual. The height adjustment system for different bottles is done using a servo and ball screw mechanism. The speed and rotation amount of the cap can be easily adjusted with high precision via the machine’s display screen. Additionally, the machine’s memory allows for storing settings for different bottles.
Product video
Price inquiry form
The double-head linear capping machines with a servo motor mechanism are designed to seal various types of containers, such as sauce bottles, oils, shampoos, syrups, and cleaning liquids. The capping system of this machine is manual, and the bottle height adjustment is done using a servo and ball screw mechanism. As a result, the sealing accuracy of this machine is high, and with two separate heads, it offers great speed and efficiency. These double-head linear capping machines are used in the food, cosmetic, pharmaceutical, and chemical industries and have the capability to store settings for different bottles.
Technical Specifications
|
Features |
Specifications |
| Sealing Capacity |
2,000 to 3,000 caps per hour |
|
Type of Cap |
Types of plastic round section caps |
| Bottle Width |
30 to 100 |
|
Bottle Height |
300 to 100 |
| Bottle Material |
Plastic |
|
Chassis and Cover Material |
Epoxy Painted Iron with SST 304 Covering |
| Power Consumption |
AC220V 1PH 50/60Hz |
|
Machine Dimensions |
200 (Length) × 80 (Width) × 190 (Height) cm |
| Machine Weight |
400 kilograms |
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Other Specifications:
Options:
The design, production and testing of the machines are fully carried out at Radan Machine; Therefore, we can offer more competitive pricing, faster support, and precise customization according to your needs.
Yes; our machines’ quick size change system allows them to be ready for a new cap size and type without long downtime.
Yes; our machines feature a modular design, making them easily compatible with filling machines, labeling machines, and other automated equipment.
Yes; our machines feature a modular design, making them easily compatible with filling machines, labeling machines, and other automated equipment.
All of our Machines come with an 18-month warranty from the shipping date, a 12-month warranty from the installation date, and 10 years of after-sales service.
